Tourneo
Active
2.0L Ford EcoBlue Diesel
Engine
Minibus
Bodystyle

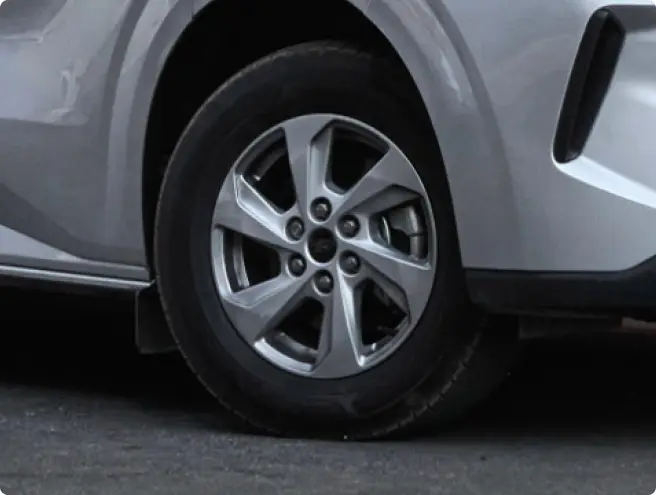

Hit the ground running
Ride comfortably on every trip with 16″ Sparkle Silver alloy wheels.

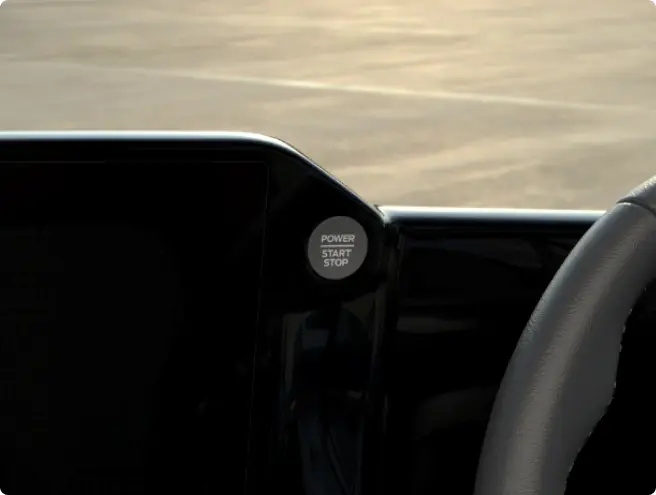

Push the innovation boundary
Hop in or out of your Tourneo and start the engine with the push of a button.

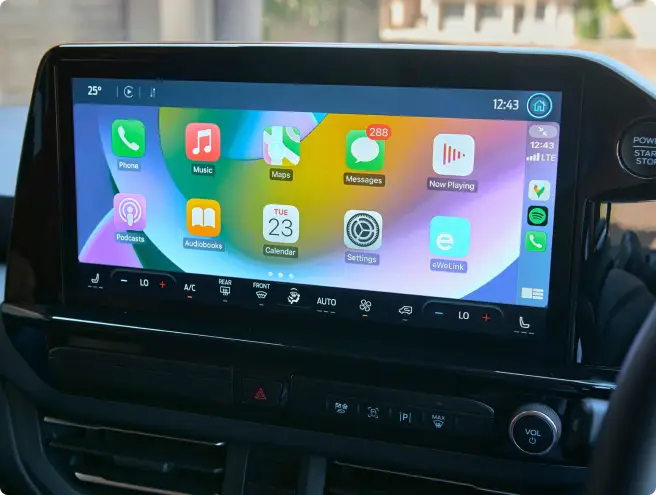

In touch with entertainment
All the info and entertainment you need on a 13″ Touchscreen with SYNC 4.
Tourneo Active: Accessible Entry, Uncompromised Quality
The Tourneo Active provides a more accessible entry point, while still delivering the same renowned comfort, space, and practicality found in the Tourneo Custom.
Engine & Transmission
Engine Type: 2.0L Panther
Engine Size (cm3): 1996
Compression ratio: 16,05:1
Maximum Power: 100 kW
Maximum Torque: 360 Nm
No. of Valves: 16
Bore x Stroke (mm): 84.01 x 90.00
Fuel Management System: Direct Cylinder Injection
Heavy Duty Battery
8-Speed Automatic Transmission
Performance
Fuel Economy – 8,2l/100 km) Combined Cycle: 7.4
Top Speed (km/h): 180
Adblue Injecter
CO2 Emission Combined (g/km): 194
Suspension
Leather Wrapped Steering Wheel
Steering Wheel Manual Adjustment (Reach & Rake)
Steering
Leather steering wheel – 3 spoke, Sensico-trimmed
Driveline
FWD
Brakes
Front Ventilated Discs: 308 x 33 mm
Rear Solid Discs: 304 x 14.5 mm
Chassis & Suspension
Brake Support Systems: HLA/ESP/TC/ABS
- HLA: Hill Launch Assist
- ESP: Electronic Stability Programme
- TC: Traction Control
- ABS: Anti-Lock Braking Systems
Steering System: Power Steering
Park Brake: Electronic
Wheels
Wheel Size & Type: 16″ Alloy
Tyre Size: 215/65 R16C
16″ Steel Spare Wheel
Dimensions (mm) - Exterior
Vehicle Length (mm): 5450
Overall Width with Mirrors (mm): 2275
Overall Width with Folded Back Mirrors: 2148
Overall Width without Mirrors and Handles (Maximum Body Width): 1999
Overall Height: 1961
Wheel Base (mm): 3500
Rear Overhang (mm): 1125
Minimum Turning Radius (m): 5.615
Vehicle Masses (kg)
Gross Vehicle Mass / GVM (kg): 3225
Gross Combination Mass / GCM (kg): 5725
Gross Axle Mass Front (kg): 1750
Gross Axle unit Mass Rear (kg): 1675
Maximum Braked Towing Capacity: 2500
Cargo Dimensions (mm)
Width – Load Space Between Wheel Arches: 1392
Height – Load Space Floor to Roof: 1433
Height – Rear Loading Height: 531 – 585
Length – Load Space Maximum (Up to Bulkhead): 3002
Maximum Load Volume (cu.m): 6.8
Euro Pallet Capacity (1,200mm x 800mm): 3
Exterior
Exterior Lighting – Fixed DSS Hybrid LED Headlights – Daytime Running
Exterior Lighting – Adaptive Front Lighting System

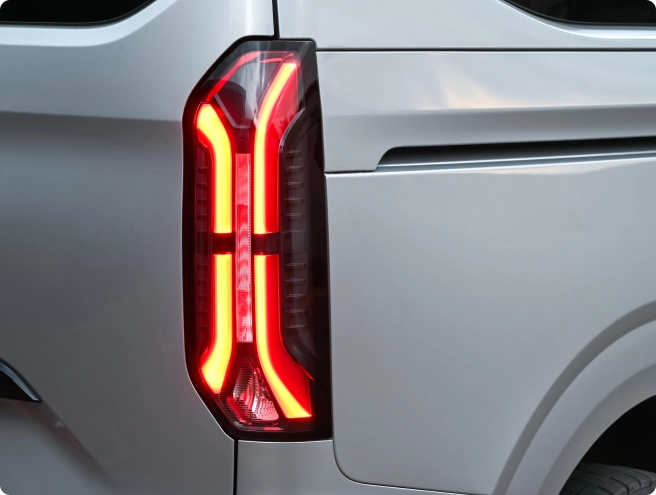

Exterior Lighting – Halogen Taillamps
Exterior Lighting – Auto Headlamp On/Off
Exterior Door Handles – Colour: Black
Exterior Mirrors – Colour: Body Colour
Exterior Mirrors – Functionality: Power Adjustable
Front Bumper: Body Colour
Rear Bumper: Black

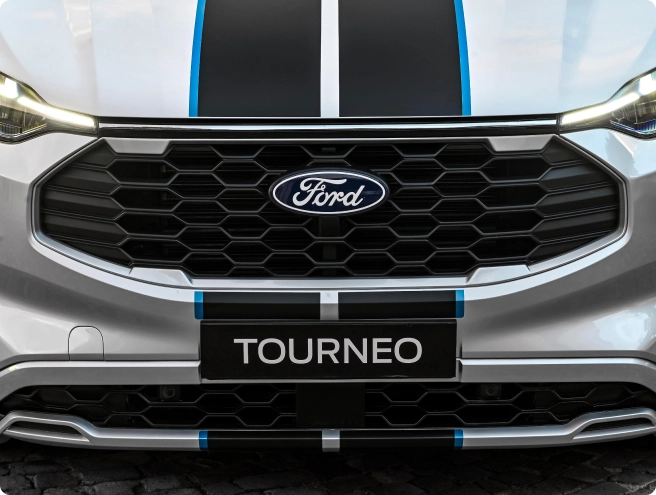

Grille: Black
Mud Flaps
Interior, Seating and Door Trim
Number of Seats: 8
Cloth Seat Trim
Adjustable Seat – Driver: 4-Way Manual Adjust
Adjustable Seat – Passenger: 2-Way Manual Adjust
Lumbar Support – Driver Seat
Console Floor – Full
Under Seat Stowage Compartment (Passenger Seat)
Under Seat Stowage Compartment (Rear Seats)

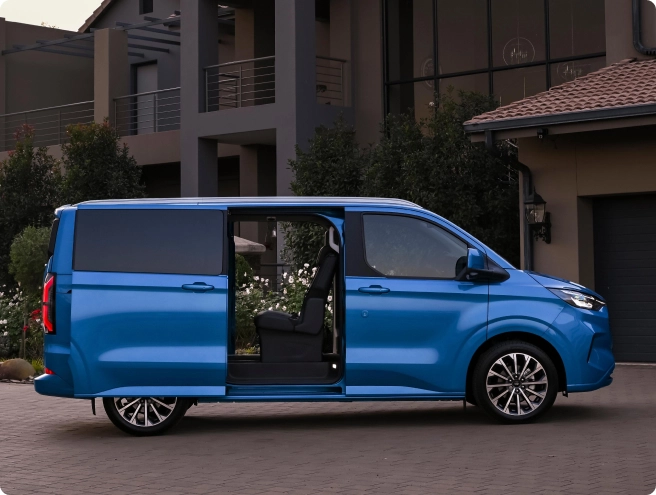

Dual Side Load Doors
Close Assist Side Load Door
Side Door Pull-Up Banners
Floor Covering: Carpet
Carpet Floor Mats (O)
Comfort and Convenience
Automatic Climate Control
Rear Seat Climate Control
Automatic Rain-Sensing Windshield Wipers
Auxillary 12V Power Outlet – Instrument Panel
Auxillary 12V Power Outlet – Boot
USB-A – Instrument Panel
Rear Passenger Charging Points
Fold Down Tray Table (Back of Centre Passenger Seat, 2nd Row)
Centre Console with Single Lid and 2 Cup Holders
Dual Heated Signal Mirrors – Auto Power Fold
Power Windows – 1 Touch Up & Down with Global Open & Close: Driver / Passenger
Electric Window Defroster
Electric Rear Window Defroster
Audio And Communication
Embedded Modem connected to FordPass
FordPass Connect
- – featuring Remote Start (AT only), Lock / Unlock, Vehicle Locator, Vehicle Health Alerts, Vehicle Status Oil Life, Enhanced Customer Connectivity Settings
Digital Instrument Cluster with Configurable Display: 8″
Colour Multi-Function Touch Screen Display: 13″ screen
Speakers: 10
AM/FM Stereo Radio
Bluetooth® with Phone / Audio Streaming
SYNC®4
Steering Wheel Audio/Function Control
Apple CarPlayTM & Android AutoTM
Safety and Security
Airbags – Driver & Passenger – Front & Side
Airbags – Rear Curtain
3 Point Lap Sash Seat Belt – All Positions
Power Door Dead Locks
Locking Configuration – 2 <1 press - First & second row doors, 2 press - all doors>
Keyless Entry/Start
Immobilizer
Thatcham Category 1 Alarm
Stowage & Carrying
Front Door Storage with Bottle Holders
Cup Holders Front – 4 (Centre Console, Driver Side and Passenger Side)
Cup Holders Rear – 4 (Rear Passengers)
Load Area Tie Down Loops – 2
Locking Glove Box
Driver Assistance Technologies
Drive Modes 4 – (Normal, Eco, Slippery & Tow/Haul)
Driver Assistance Pack #2
- Intellingent Speed Assistance
- Collision Mitigation System
- Driver Impairment Monitor
- Lane Keeping Aid
- Speed Control
- Speed Sign Recognition
- Parking Sensors – Front
- Parking Sensors – Rear
- Rear View Camera – Digital
Tyre Pressure Monitoring System
Towing
Maximum Braked Towing Capacity: 2500
Trailer Tow Electrics
Trailer Light Check
Recovery Hooks: Front (x1)
Ford Protect
Service intervals: 15 000 km
Ford Optional Service Plan 6 year / 90 000 km (O)

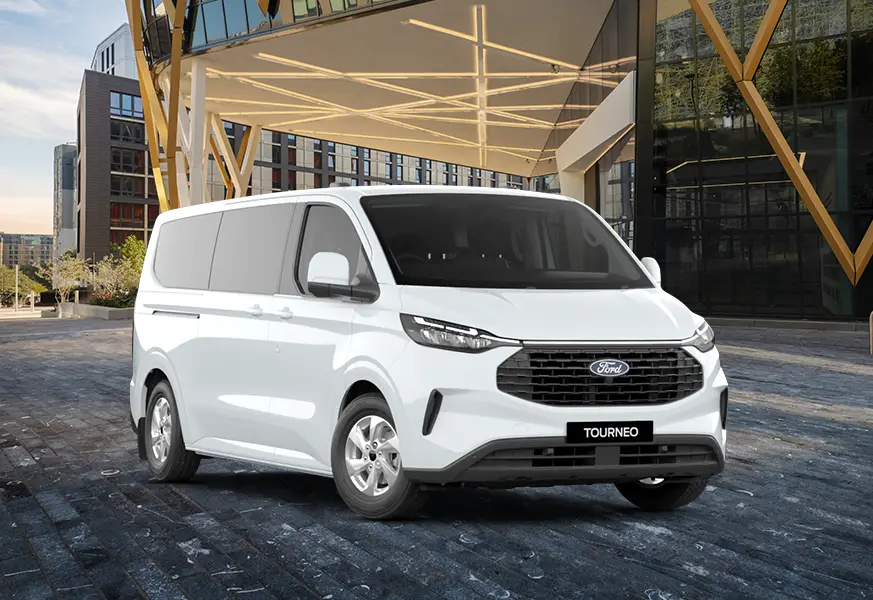

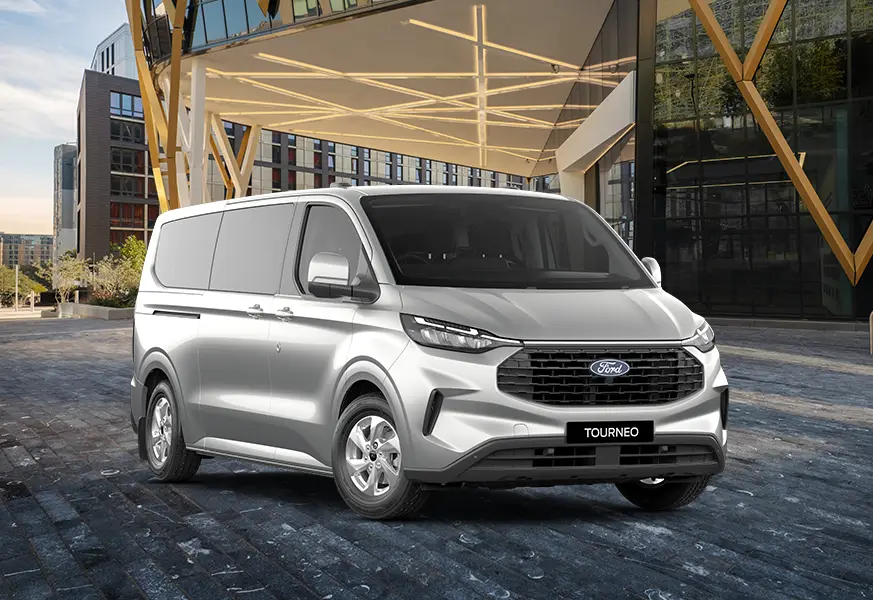

Tourneo
Trend
2.0L Ford EcoBlue Diesel
Engine
Minibus
Bodystyle
Hit the ground running
Ride comfortably on every trip with 16″ Sparkle Silver alloy wheels.
Push the innovation boundary
Hop in or out of your Tourneo and start the engine with the push of a button.

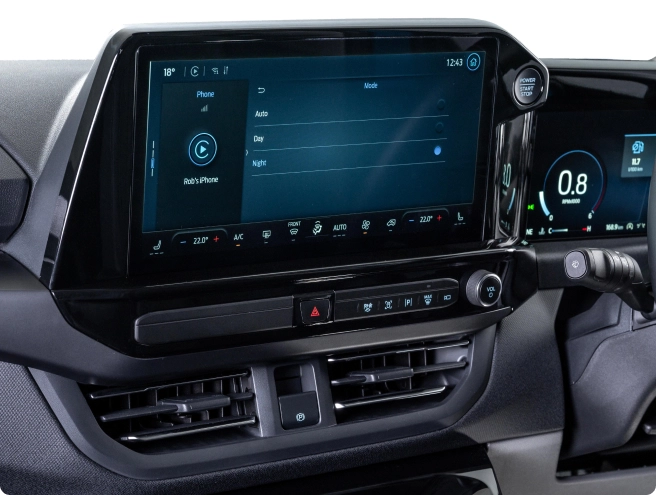

In touch with entertainment
All the info and entertainment you need on a 13″ Touchscreen with SYNC 4.
Big on Space, Big on Refinement: The Tourneo Trend
The Tourneo Trend is a practical workhorse with comfortable cloth upholstery and easy-to-clean surfaces. Despite its commercial vehicle size (over five metres long and two metres wide), it’s surprisingly refined, easy to drive, and quiet.
Engine & Transmission
Engine Type: 2.0L Panther
Engine Size (cm3): 1996
Compression ratio: 16,05:1
Maximum Power: 100 kW
Maximum Torque: 360 Nm
No. of Valves: 16
Bore x Stroke (mm): 84.01 x 90.00
Fuel Management System: Direct Cylinder Injection
Heavy Duty Battery
Transmissions
8-Speed Automatic Transmission
Suspension
Leather Wrapped Steering Wheel
Steering Wheel Manual Adjustment (Reach & Rake)
Performance
Fuel Economy – 8,2l/100 km) Combined Cycle: 7.4
Top Speed (km/h): 180
Adblue Injecter
CO2 Emission Combined (g/km): 194
Steering
Leather Wrapped Steering Wheel
Steering Wheel Manual Adjustment (Reach & Rake)
Driveline
FWD
Brakes
Front Ventilated Discs: 308 x 33 mm
Rear Solid Discs: 304 x 14.5 mm
Chassis & Suspension
Brake Support Systems: HLA/ESP/TC/ABS
- HLA: Hill Launch Assist
- ESP: Electronic Stability Programme
- TC: Traction Control
- ABS: Anti-Lock Braking Systems
Steering System: Power Steering
Park Brake: Electronic
Wheels
Wheel Size & Type: 16″ Alloy
Tyre Size: 215/65 R16C
Dimensions (mm) - Exterior
Vehicle Length (mm): 5450
Overall Width with Mirrors (mm): 2275
Overall Width with Folded Back Mirrors: 2148
Overall Width without Mirrors and Handles (Maximum Body Width): 1999
Overall Height: 1961
Wheel Base (mm): 3500
Rear Overhang (mm): 1125
Minimum Turning Radius (m): 5.615
Vehicle Masses (kg)
Gross Vehicle Mass / GVM (kg): 3225
Gross Combination Mass / GCM (kg): 5725
Gross Axle Mass Front (kg): 1750
Gross Axle unit Mass Rear (kg): 1675
Maximum Braked Towing Capacity: 2500
Cargo Dimensions (mm)
Width – Load Space Between Wheel Arches: 1392
Height – Load Space Floor to Roof: 1433
Height – Rear Loading Height: 531 – 585
Length – Load Space Maximum (Up to Bulkhead): 3002
Exterior
Integrated and Foldable Roof Rack (O)
Exterior Lighting – LED Headlights – Daytime Running
Exterior Lighting – Adaptive Front Lighting System
Exterior Lighting – Halogen Taillamps
Exterior Lighting – Auto Headlamp On/Off
Exterior Door Handles – Colour: Black
Exterior Mirrors – Colour: Body Colour
Exterior Mirrors – Functionality: Power Adjustable
Front Bumper: Body Colour
Rear Bumper: Black
Grille: Black
Mud Flaps
Privacy Glass
Interior, Seating and Door Trim
Number of Seats: 8
Dual Grab Handles
Seat Trim: Cloth
Adjustable Seat – Driver: 4-Way Manual Adjust
Adjustable Seat – Passenger: 2-Way Manual Adjust
Heated Seats – Driver & Front Passenger
Lumbar Support – Driver Seat
Lumber Support- Passenger
Arm Rest – Driver & Front Passenger
Under Seat Stowage Compartment (Passenger Seat)
Under Seat Stowage Compartment (Rear Seats)
Dual Side Load Doors
Close Assist Side Load Door (O)
Floor Covering: Carpet
Comfort and Convenience
Dual Zone Automatic Climate Control (O)
Rear Seat Climate Control (O)
Automatic Rain-Sensing Windshield Wipers
Auxillary 12V Power Outlet – Instrument Panel
Auxillary 12V Power Outlet – Boot
USB-A – Instrument Panel
Rear Passenger Charging Points
Wireless Charging
Fold Down Tray Table (Back of Centre Passenger Seat, 2nd Row)
Centre Console with Single Lid and 2 Cup Holders
Dual Heated Signal Mirrors – Auto Power Fold
Power Front Windows – 1 Touch Up & Down with Global Open & Close
Electric Window Defroster
Electric Rear Window Defroster
Audio And Communication
Embedded Modem connected to FordPass
FordPass Connect
- – featuring Remote Start (AT only), Lock / Unlock, Vehicle Locator, Vehicle Health Alerts, Vehicle Status Oil Life, Enhanced Customer Connectivity Settings
Digital Instrument Cluster with Configurable Display: 8″
Colour Multi-Function Touch Screen Display: 13″ screen
Speakers: 10
AM/FM Stereo Radio
Bluetooth® with Phone / Audio Streaming
SYNC®4
Steering Wheel Audio/Function Control
Apple CarPlayTM & Android AutoTM
Safety and Security
Airbags – Driver & Passenger – Front & Side
Airbags – Rear Curtain
3 Point Lap Sash Seat Belt – All Positions
Power Door Dead Locks
Locking Configuration – 2 <1 press - First & second row doors, 2 press - all doors>
Extended Range Single Fuel Tank (O)
Keyless Entry/Start
2 Remote Keys
Immobilizer
Stowage & Carrying
Front Door Storage with Bottle Holders
Cup Holders Front – 4 (Centre Console, Driver Side and Passenger Side)
Cup Holders Rear – 4 (Rear Passengers)
Load Area Tie Down Loops – 2
Locking Glove Box
Driver Assistance Technologies
Drive Modes 4 – (Normal, Eco, Slippery & Tow/Haul)
Driver Assistance Pack #2
- Intellingent Speed Assistance
- Collision Mitigation System
- Driver Impairment Monitor
- Lane Keeping Aid
- Speed Control
- Speed Sign Recognition
- Parking Sensors – Front
- Parking Sensors – Rear
- Rear View Camera – Digital
Tyre Pressure Monitoring System
Towing
Maximum Braked Towing Capacity: 2500
Trailer Tow Electrics
Recovery Hooks: Front (x1)
Ford Protect
Service intervals: 15 000 km
Service plan (O)
Client has choice to purchase a service or maintenance plan of up to 8yrs or 165 000 km at point of sale, at a discounted price. T&C’s apply.
Comprehensive warranty
4 years / 120 000 km – This is the standard OEM warranty, not a Ford Protect warranty.
The client has the option to extend the Factory warranty and purchase a Ford Protect warranty extension of up to 7yrs/200 000 km
Roadside assistance:
4 years / unlimited km – AA Roadside Assistance
The client has the option to extend the Roadside Assistance and purchase a 1 or 2 years Ford Protect Roadside Assistance extension
Corrosion warranty: 5 years / unlimited km
5 years / unlimited km – This is the OEM Corrosion warranty, not Ford Protect. Ford Protect does not sell an extension on corrosion warranty

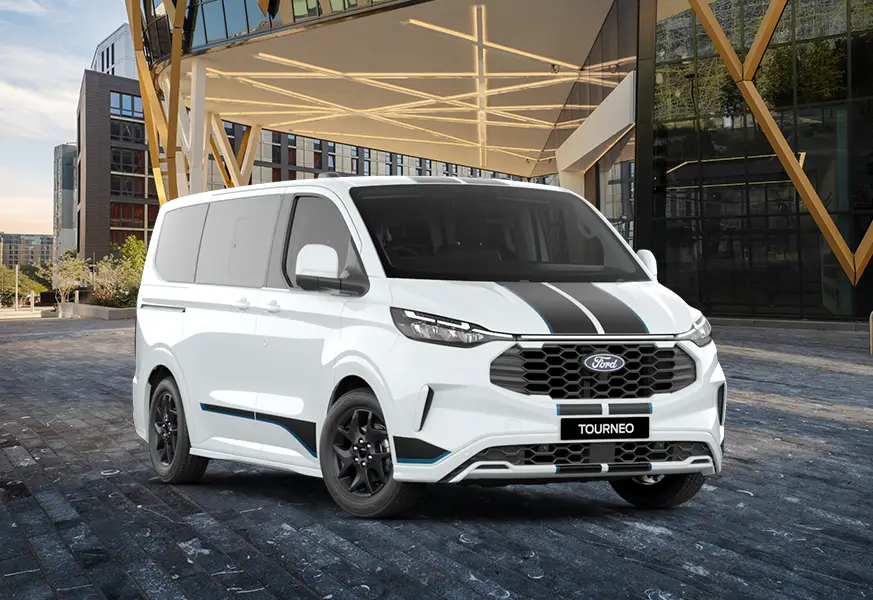

Tourneo
Sport
V710
Engine
Minibus
Bodystyle
Hit the ground running

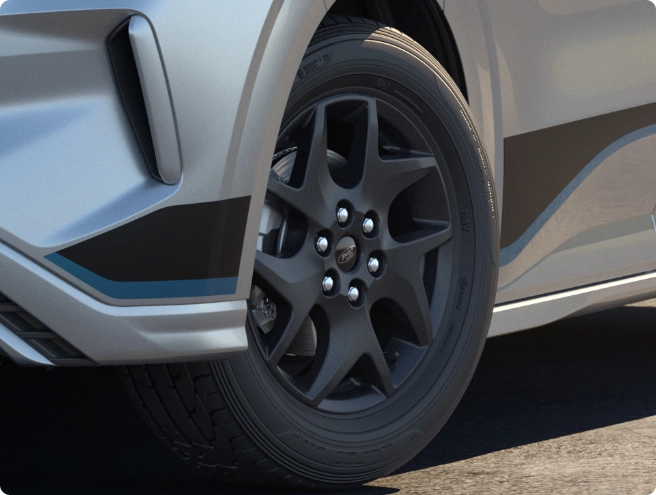

17″ Sport Alloy Wheels
Sporty By Design
Unique Sport Grille with body kit with rear spoiler

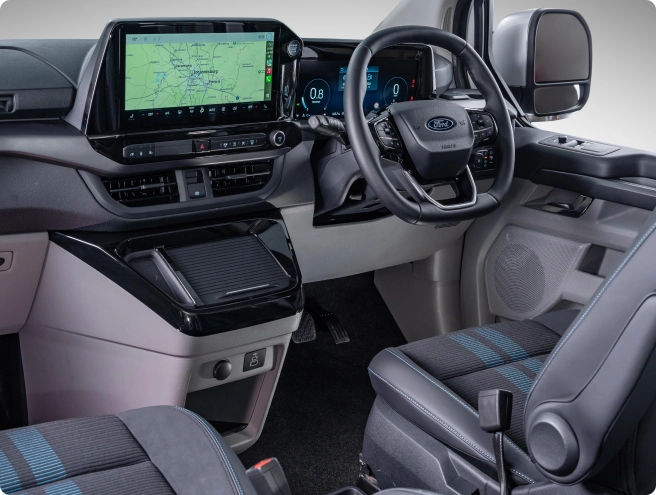

In touch with entertainment
13″ Touchscreen with SYNC 4
Light the way in style
LED Tail-lights
Engine & Transmission
Engine Type: 2.0L Panther
Engine Size (cm3): 1996
Compression ratio: 16.05:1
Maximum Power: 125 kW
Maximum Torque: 390 Nm
No. of Valves: 16
Bore x Stroke (mm): 84.01 x 90.00
Fuel Management System: Direct Cylinder Injection
Heavy Duty Battery
Transmissions
8-Speed Automatic Transmission
Performance
Fuel Economy – 8,2l/100 km) Combined Cycle: 7.4
Top Speed (km/h): 180
Adblue Injecter
CO2 Emission Combined (g/km): 194
Suspension
Leather Wrapped Steering Wheel
Steering Wheel Manual Adjustment (Reach & Rake)
Steering
Leather Wrapped Steering Wheel
Steering Wheel Manual Adjustment (Reach & Rake)
Driveline
FWD
Brakes
Front Ventilated Discs: 308 x 33 mm
Rear Solid Discs: 304 x 14.5 mm
Chassis & Suspension
Brake Support Systems: HLA/ESP/TC/ABS
- HLA: Hill Launch Assist
- ESP: Electronic Stability Programme
- TC: Traction Control
- ABS: Anti-Lock Braking Systems
Steering System: Power Steering
Park Brake: Electronic
Wheels
Wheel Size & Type: 17″ Multi-spoke Alloy in Matte Black
19″ Alloy (O)
Tyre Size: 215/60 R17C 109/107T / 235/50 R19C
Dimensions (mm) - Exterior
Vehicle Length (mm): 5050
Overall Width with Mirrors (mm): 2275
Overall Width with Folded Back Mirrors: 2148
Overall Width without Mirrors and Handles (Maximum Body Width): 3032
Overall Height: 1961
Wheel Base (mm): 3100
Rear Overhang (mm): 992
Minimum Turning Radius (m): 5.615
Vehicle Masses (kg)
Gross Vehicle Mass / GVM (kg): 3200
Gross Combination Mass / GCM (kg): 5700
Gross Axle Mass Front (kg): 1367
Gross Axle unit Mass Rear (kg): 1041
Maximum Braked Towing Capacity: 2500
Cargo Dimensions (mm)
Width – Load Space Between Wheel Arches: 1392
Height – Load Space Floor to Roof: 1433
Height – Rear Loading Height: 531 – 585
Length – Load Space Maximum (Up to Bulkhead): 3002
Exterior
Roof Rails (O)
Integrated and Foldable Roof Rack (O)
Exterior Lighting – LED Headlights – Daytime Running
Exterior Lighting – Adaptive Front Lighting System
Exterior Lighting – LED Tailamps
Exterior Lighting – Auto Headlamp On/Off
Exterior Door Handles – Colour: Body Colour
Exterior Mirrors – Colour: Body Colour
Exterior Mirrors – Functionality: Power Adjustable
Front Bumper: Body Colour
Rear Bumper: Body Colour
Rear Spoiler
Grille: Body Colour
Mud Flaps
Privacy Glass
Hood Accent Stripes (Bumper, Hood, Bodyside & Tailgate)
Load Compartment Picnic Light
Interior, Seating and Door Trim
Number of Seats: 8
Dual Grab Handles
Seat Trim: Partial
Adjustable Seat – Driver: 6-Way Power Adjust
Adjustable Seat – Passenger: 4-Way Manual Adjust
Manual Rear Seat Recliner
Heated Seats – Driver & Front Passenger
Lumbar Support – Driver Seat
Lumber Support- Passenger
Arm Rest – Driver & Front Passenger
Under Seat Stowage Compartment (Passenger Seat)
Dual Side Load Doors
Power Dual Side Load Door
Close Assist Side Load Door
Liftgate Rear Cargo Door
Floor Covering: Carpet
Comfort and Convenience
AC–M Tri Zone Automatic Air Conditioner – Driver, Passenger & Rear zones
Rear Washer/Wiper
Automatic Rain-Sensing Windshield Wipers
USB/ AUX Power Socket
3 Rear USB Ports
Rear Passenger Charging Points
Wireless Charging
Fold Down Tray Table (Back of Centre Passenger Seat, 2nd Row)
Centre Console with Single Lid and 2 Cup Holders
Console Floor Full
Dual Heated Signal Mirrors – Auto Power Fold
Day/Night Inside Mirror
Power Front Windows – 1 Touch Up & Down with Global Open & Close
Electric Window Defroster
Electric Rear Window Defroster
Sun Blinds
Audio And Communication
Embedded Modem connected to FordPass
FordPass Connect
- – featuring Remote Start (AT only), Lock / Unlock, Vehicle Locator, Vehicle Health Alerts, Vehicle Status Oil Life, Enhanced Customer Connectivity Settings
Digital Instrument Cluster with Configurable Display: 8″
Colour Multi-Function Touch Screen Display: 13″ screen
Speakers: 10
AM/FM Stereo Radio
Bluetooth® with Phone / Audio Streaming
SYNC®4
Steering Wheel Audio/Function Control
Apple CarPlayTM & Android AutoTM
Mobile Office Pack (O)
Safety and Security
Airbags – Driver & Passenger – Front & Side
Airbags – Driver – Front & Rear Curtain Aibag
Airbags – Passenger & Side Mounted
Airbags – Rear Curtain
3 Point Lap Sash Seat Belt – All Positions
Power Door Dead Locks
Two Step Door Unlocking System
Locking Configuration – 2 <1 press - First & second row doors, 2 press - all doors>
Extended Range Single Fuel Tank
Keyless Entry/Start
2 Remote Keys
Thatcham Category 1 Alarm
Stowage & Carrying
Front Door Storage with Bottle Holders
Overhead Console
Cup Holders Front – 4 (Centre Console, Driver Side and Passenger Side)
Cup Holders Rear – 4 (Rear Passengers)
Load Area Tie Down Loops – 4
Locking Glove Box
Driver Assistance Technologies
Drive Modes 5 – (Normal, Eco, Slippery, Tow/Haul & Sport)
Driver Assistance Package #5
- Intellingent Speed Assistance
- Collision Mitigation System
- Adaptive Speed Control/Cruise Control with Stop & Go
- Lane Change Warning and Aid
- Anti-Lock Brake System (ABS)
- Blind Spot Monitoring & Assist
- Reverse & Front Parking Aid
- Reverse Brake Assist
- Rear View Camera
Tyre Pressure Monitoring System
Towing
Maximum Braked Towing Capacity: 2500
Trailer Tow Electrics
Recovery Hooks: Front (x1)
Ford Protect
Service intervals: 15 000 km
Service plan (O)
Client has choice to purchase a service or maintenance plan of up to 8yrs or 165 000 km at point of sale, at a discounted price. T&C’s apply.
Comprehensive warranty
4 years / 120 000 km – This is the standard OEM warranty, not a Ford Protect warranty.
The client has the option to extend the Factory warranty and purchase a Ford Protect warranty extension of up to 7yrs/200 000 km
Roadside assistance:
4 years / unlimited km – AA Roadside Assistance
The client has the option to extend the Roadside Assistance and purchase a 1 or 2 years Ford Protect Roadside Assistance extension
Corrosion warranty: 5 years / unlimited km
5 years / unlimited km – This is the OEM Corrosion warranty, not Ford Protect. Ford Protect does not sell an extension on corrosion warranty

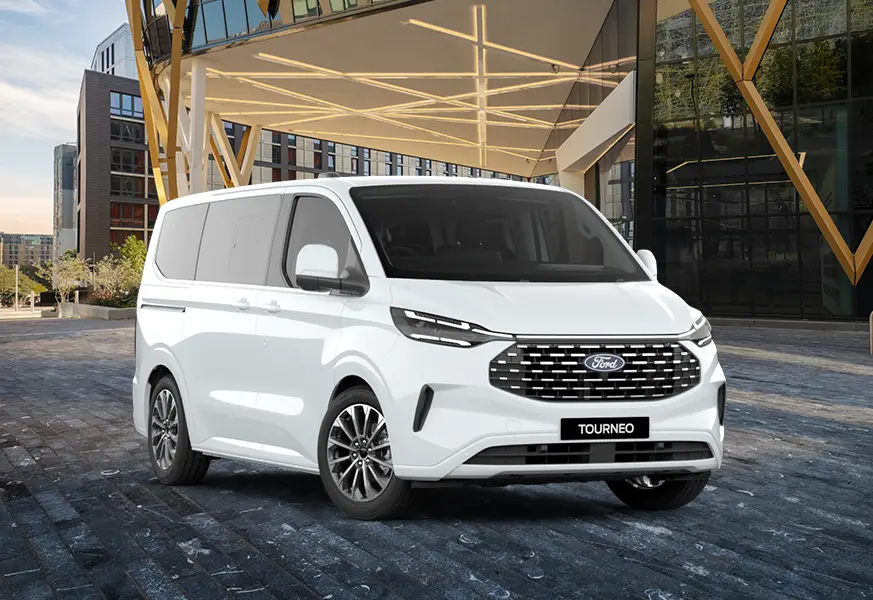

Tourneo
Titanium X
2.0L Ford EcoBlue Diesel
Engine
Minibus
Bodystyle
Hit the ground running

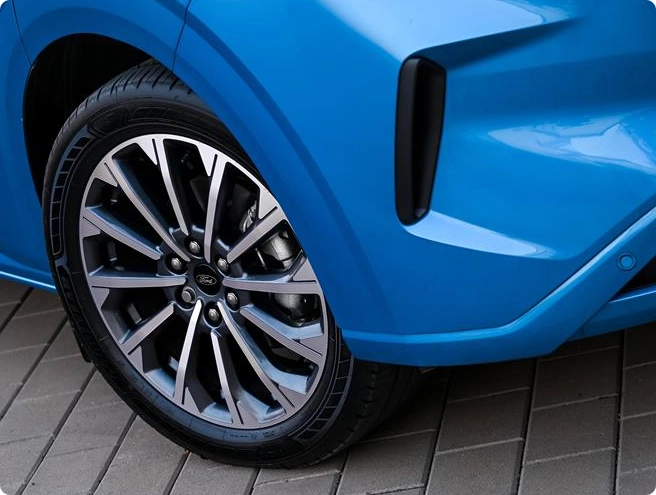

19″ Titanium X Alloy Wheels
Sleek design meets sky-high comfort

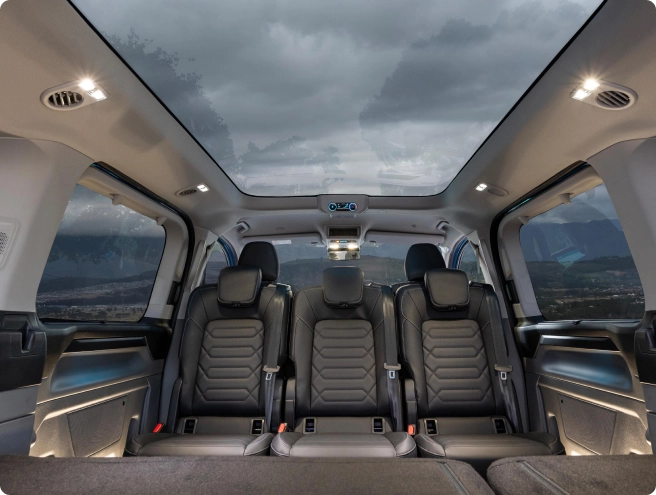

Panoramic Roof
Panoramic Roof is optional.
Smart Entry, Smooth Exit
Power Dual Side Load Doors
In touch with entertainment
13” Touchscreen with SYNC 4
Engine & Transmission
Engine Type: 2.0L Panther
Engine Size (cm3): 1996
Compression ratio: 16.05:1
Maximum Power: 125 kW
Maximum Torque: 390 Nm
No. of Valves: 16
Bore x Stroke (mm): 84.01 x 90.00
Fuel Management System: Direct Cylinder Injection
Heavy Duty Battery
Transmissions
8-Speed Automatic Transmission
Performance
Fuel Economy – 8,2l/100 km) Combined Cycle: 7.4
Top Speed (km/h): 180
Adblue Injecter
CO2 Emission Combined (g/km): 194
Suspension
Leather Wrapped Steering Wheel
Steering Wheel Manual Adjustment (Reach & Rake)
Steering
Leather Wrapped Steering Wheel
Steering Wheel Manual Adjustment (Reach & Rake)
Driveline
FWD
Brakes
Front Ventilated Discs: 308 x 33 mm
Rear Solid Discs: 304 x 14.5 mm
Chassis & Suspension
Brake Support Systems: HLA/ESP/TC/ABS
- HLA: Hill Launch Assist
- ESP: Electronic Stability Programme
- TC: Traction Control
- ABS: Anti-Lock Braking Systems
Steering System: Power Steering
Park Brake: Electronic
Wheels
Wheel Size & Type: 17″ Multi-spoke Alloy in Matte Black
19″ Alloy (O)
Tyre Size: 215/60 R17C 109/107T / 235/50 R19C
Dimensions (mm) - Exterior
Vehicle Length (mm): 5050
Overall Width with Mirrors (mm): 2275
Overall Width with Folded Back Mirrors: 2148
Overall Width without Mirrors and Handles (Maximum Body Width): 3032
Overall Height: 1961
Wheel Base (mm): 3100
Rear Overhang (mm): 992
Minimum Turning Radius (m): 5.615
Vehicle Masses (kg)
Gross Vehicle Mass / GVM (kg): 3200
Gross Combination Mass / GCM (kg): 5700
Gross Axle Mass Front (kg): 1367
Gross Axle unit Mass Rear (kg): 1041
Maximum Braked Towing Capacity: 2500
Cargo Dimensions (mm)
Width – Load Space Between Wheel Arches: 1392
Height – Load Space Floor to Roof: 1433
Height – Rear Loading Height: 531 – 585
Length – Load Space Maximum (Up to Bulkhead): 3002
Exterior
Roof Rails (O)
Integrated and Foldable Roof Rack (O)
Exterior Lighting – LED Headlights – Daytime Running
Exterior Lighting – Adaptive Front Lighting System
Exterior Lighting – LED Tailamps
Exterior Lighting – Auto Headlamp On/Off
Exterior Door Handles – Colour: Body Colour
Exterior Mirrors – Colour: Body Colour
Exterior Mirrors – Functionality: Power Adjustable
Front Bumper: Body Colour
Rear Bumper: Body Colour
Rear Spoiler
Grille: Body Colour
Mud Flaps
Privacy Glass
Hood Accent Stripes (Bumper, Hood, Bodyside & Tailgate)
Load Compartment Picnic Light
Interior, Seating and Door Trim
Number of Seats: 8
Dual Grab Handles
Seat Trim: Partial
Adjustable Seat – Driver: 6-Way Power Adjust
Adjustable Seat – Passenger: 4-Way Manual Adjust
Manual Rear Seat Recliner
Heated Seats – Driver & Front Passenger
Lumbar Support – Driver Seat
Lumber Support- Passenger
Arm Rest – Driver & Front Passenger
Under Seat Stowage Compartment (Passenger Seat)

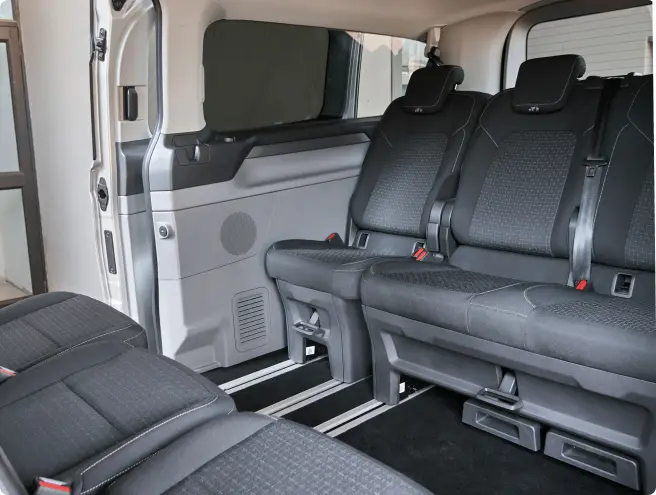

Dual Side Load Doors
Power Dual Side Load Door
Close Assist Side Load Door
Liftgate Rear Cargo Door
Floor Covering: Carpet
Comfort and Convenience
AC–M Tri Zone Automatic Air Conditioner – Driver, Passenger & Rear zones
Rear Washer/Wiper
Automatic Rain-Sensing Windshield Wipers
USB/ AUX Power Socket
3 Rear USB Ports
Rear Passenger Charging Points
Wireless Charging
Fold Down Tray Table (Back of Centre Passenger Seat, 2nd Row)
Centre Console with Single Lid and 2 Cup Holders
Console Floor Full
Dual Heated Signal Mirrors – Auto Power Fold
Day/Night Inside Mirror
Power Front Windows – 1 Touch Up & Down with Global Open & Close
Electric Window Defroster
Electric Rear Window Defroster
Sun Blinds
Audio And Communication
Embedded Modem connected to FordPass
FordPass Connect
- – featuring Remote Start (AT only), Lock / Unlock, Vehicle Locator, Vehicle Health Alerts, Vehicle Status Oil Life, Enhanced Customer Connectivity Settings
Digital Instrument Cluster with Configurable Display: 8″
Colour Multi-Function Touch Screen Display: 13″ screen
Speakers: 10
AM/FM Stereo Radio
Bluetooth® with Phone / Audio Streaming
SYNC®4
Steering Wheel Audio/Function Control
Apple CarPlayTM & Android AutoTM
Mobile Office Pack (O)
Safety and Security
Airbags – Driver & Passenger – Front & Side
Airbags – Driver – Front & Rear Curtain Aibag
Airbags – Passenger & Side Mounted
Airbags – Rear Curtain
3 Point Lap Sash Seat Belt – All Positions
Power Door Dead Locks
Two Step Door Unlocking System
Locking Configuration – 2 <1 press - First & second row doors, 2 press - all doors>
Extended Range Single Fuel Tank
Keyless Entry/Start
2 Remote Keys
Thatcham Category 1 Alarm
Stowage & Carrying
Front Door Storage with Bottle Holders
Overhead Console
Cup Holders Front – 4 (Centre Console, Driver Side and Passenger Side)
Cup Holders Rear – 4 (Rear Passengers)
Load Area Tie Down Loops – 4
Locking Glove Box
Driver Assistance Technologies
Drive Modes 5 – (Normal, Eco, Slippery, Tow/Haul & Sport)
Driver Assistance Package #5
- Intellingent Speed Assistance
- Collision Mitigation System
- Adaptive Speed Control/Cruise Control with Stop & Go
- Lane Change Warning and Aid
- Anti-Lock Brake System (ABS)
- Blind Spot Monitoring & Assist
- Reverse & Front Parking Aid
- Reverse Brake Assist
- Rear View Camera
Tyre Pressure Monitoring System
Towing
Maximum Braked Towing Capacity: 2500
Trailer Tow Electrics
Recovery Hooks: Front (x1)
Ford Protect
Service intervals: 15 000 km
Service plan (O)
Client has choice to purchase a service or maintenance plan of up to 8yrs or 165 000 km at point of sale, at a discounted price. T&C’s apply.
Comprehensive warranty
4 years / 120 000 km – This is the standard OEM warranty, not a Ford Protect warranty.
The client has the option to extend the Factory warranty and purchase a Ford Protect warranty extension of up to 7yrs/200 000 km
Roadside assistance:
4 years / unlimited km – AA Roadside Assistance
The client has the option to extend the Roadside Assistance and purchase a 1 or 2 years Ford Protect Roadside Assistance extension
Corrosion warranty: 5 years / unlimited km
5 years / unlimited km – This is the OEM Corrosion warranty, not Ford Protect. Ford Protect does not sell an extension on corrosion warranty
